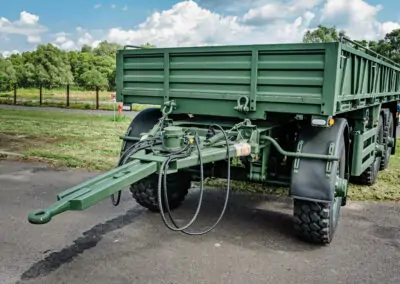

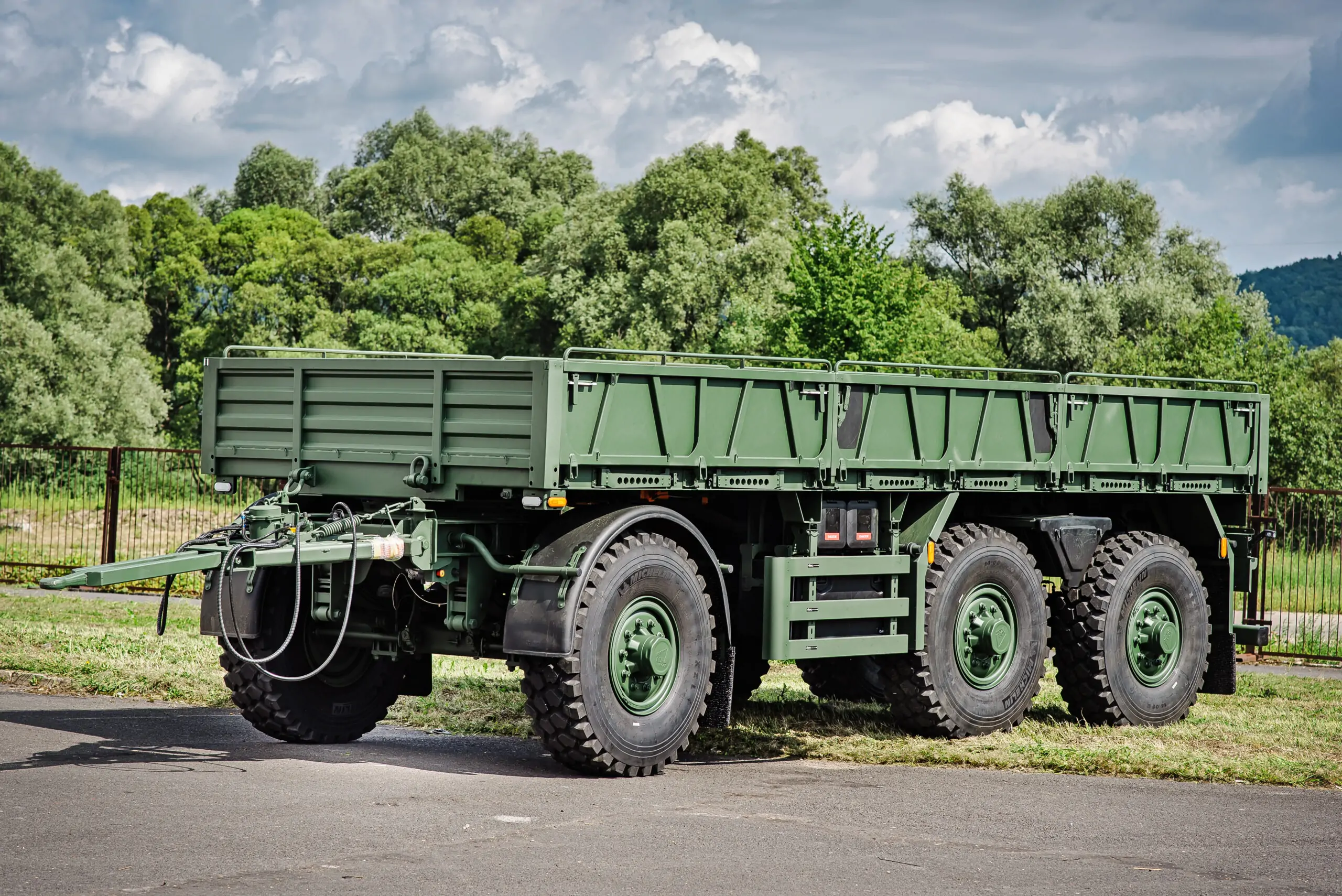

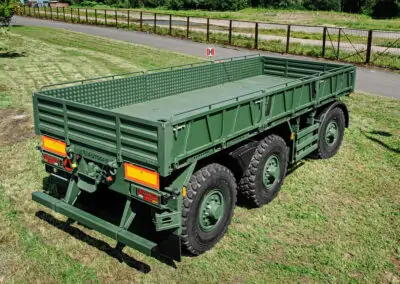

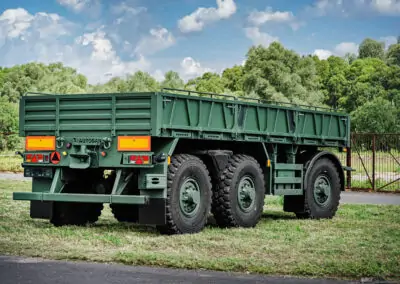

It is the basis for the construction of STZ Trailer, which is a complementary component of the STZ Vehicle (Transport and Loading Vehicle), intended for transport an additional amount of PATRIOT rockets. Rockets are loaded and unloaded from the STZ Trailer by means of a mobile folding crane located on the STZ Vehicle. Loading and unloading may take place when the trailer is hitched to the vehicle as well as when it is next to it in disengaged position.
Technical data:
Tires: 14.00R20″ / 4+1
Wheel track: 2008 mm
Spring spacing: 900 mm
Loading edge height: 1560 mm, +/- 50 mm
Permissible gross weight: 24000 kg
Axles: ATW/ADR
Permissible technical axle load: 9000 kg
Administrative axle load: 8000 kg
Suspension: mechanical
Brake: drum
Brake system: Haldex
Equipment:
• loading platform,
• spare wheel lift – 1 pc.,
• side protection in accordance with ECE,
• plastic tool box with accessories,
• wheel chocks – 4 pcs.,
• plastic fenders – 6 pcs.,
• drawbar lifting support mechanism,
• drawbar eye bushings 50/76 NATO,
• marking the vehicle in accordance with Regulation 48 ECE.
